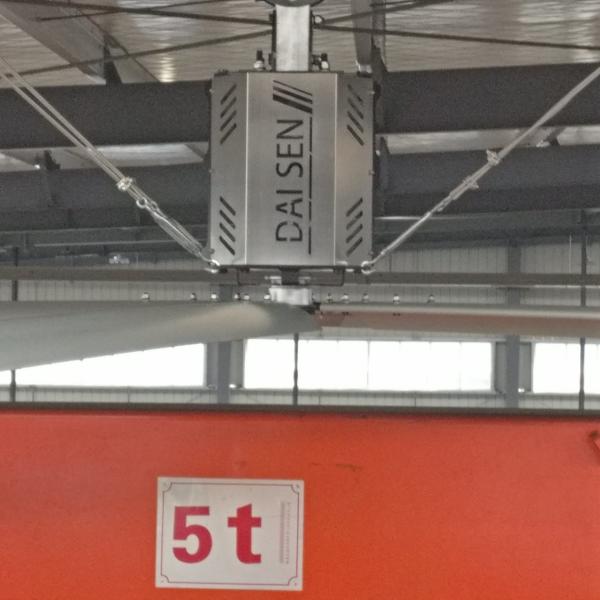

Cooling Factory Gearbox Ceiling Fan

Sichuan Junyi Industrial Equipment Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Cooling Factory Gearbox Ceiling Fan from wholesalers

    Buy cheap Cooling Factory Gearbox Ceiling Fan from wholesalers
    • Buy cheap Cooling Factory Gearbox Ceiling Fan from wholesalers

    Cooling Factory Gearbox Ceiling Fan

    Ask Lasest Price
    Payment Terms : L/C, T/T, Money Gram
    Brand Name : daisen
    Certification : ISO
    Model Number : DS
    Price : Negotiation
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    Cooling Factory Gearbox Ceiling Fan

    Industrial Ceiling Fan for Factory Cooling Down



    "DAISEN"industrial ceiling fan technical standard
    General
    Model Number ----------------------------------------------------------DS-7.3
    Operation mode ---------------------------------------------------------Forward Run
    Diameter ------------------------------------------------------------------24 FT / 7.3 Meters
    Blade Style ------------------------------------------------------------- Airfoil/OP
    Number of Blades ------------------------------------------------------- 6
    Nominal Horsepower ------------------------------------------------ 2.0 HP / 1.5 kW
    Hanging Weight (average) -------------------------------------- 156Kg
    Shipping Weight (Including control box, Mounting Hardware) (average) 186 Kg
    Maximum dB-------------------------------------------------------------------60
    (*dB Values Were Obtained by Testing. Specific Applications/Installation values may vary.

    Technical requirements for key components
    1, Blade: the blade of the fan is designed based on aerodynamics technology. It's extrusion formed and made of AI-Mg alloy No.6061 metal material.and passed T6 heat treatment. The surface of the blade is also passed Anti-corrosive treatment of abrasive oxidation. Each piece of bale includes three reinforced tendons and two isolation reinforced cavity, wide(W) 182mm, Height(H) 23mm,the thinnest part is 2mm, and the thickest part of connection area is 5mm( it's shape and simulation will be shown in coming pages ) ,the strength of 6061 T6 heat treated AI-Mg alloy material is much higher than 50XX series AI-Mg alloy material in our industry. Below table shows you mechanical properties comparison data(test report attached).

    (type of Aluminum material(25°C MPa)
    Tensile Strength
    (25°C MPa)
    Yield strength
    500kg 10mm ball
    Hardness
    1.6mm(1/16in)
    Extension rate
    5052-H1121751956012
    5083-H1121802116514
    6061-T6512902409512



    Performance (at max speed)
    Displacement (fwd, blowing down) ---------- 14800 CMM( m3/min)
    Maximum Speed----------------------------------------------------------- 50 RPM
    Power Usage @ Max. Speed ----------------------- 1.5 kW
    Efficiency @ 100% Max. Speed ------------------------------ 8.53CMM/Watt
    Maximum Effective Area(varies according to different installation height, as well as below obstacles)----600-1400 m2
    Typical Industrial Spacing --------------------------------------------12-40 Meter

    Mounting Hardware
    Standard Mount---------------------------------
    Universal I-Beam Clamp w/ Swivel Joint and 250mm Drop
    Glulam Mount (Optional) Brackets w/ Swivel Joint &200MM Drop

    Additional Drop Extensions (Puyou)--------- Up to 2m in 20cm Increments
    Motor
    gear motor ------------------------------------------------------- CV40-30-1500
    bearing structure ------------------------------------------------------- SKF heavy load bearing
    design life ------------------------------------------------------- 12 years
    HP ------------------------------------------------------- 2 / 1.5 kW
    Ambient Operating Temperature------------- -20 C° to +40C°
    Insulation Class -------------------------------------- H
    Protect Class------------------------------------------IP 55
    Work Contition------------------------------------------- continuous S 1
    Service Factor---------------------------------------- 0.8/0.78
    Gearbox
    Type -------------------------------------------------------- 2-Stage Helical
    Service Interval-------------------------------------------synthetic gear lubricating grease,maintenance free
    Motor Control Panel (MCP)
    Standard Power and Max Amp Draw-------------------- --220V AC 2Ø (16A) OR 380 AC 3Ø (20A)
    power indication light-------------------------------------------------------fault/running(red/green)
    RF Line Filter-------------------------------------RF
    Air Breaker--------------------------------------- Schneider 220V1Ø 16A 380V3Ø16A
    VFD Motor Drive Cable -----------------RVV1*
    Frequency Converter-------------------------
    poleless frequency controller,(1.5KW)|380V/220V
    Safety Components
    turnbuckle screw
    mechanical anti-dropping structure
    plastic coated steel cable
    Blade Retainer Links (6), Safety Cable, Guy Wires (Ceiling mount only)
    high strength screws and anti-skid nuts of 8.8,10.9, 12.9 grade for differnt structures.
    Warranty
    one year part warranty on Motor,blade, Gearbox & Control Panel.

    Varies of industrial ceiling fan option as below.


    Model votage(V) Power diameter Max speed Volume dB grade weight

    ModelVoltagePowerDiameterMax SpeedAir VolumeNoiseweight
    DS-7.3220V/380V1. 5KW7.3m50rpm792000m3/H< 60db156kg
    DS-6.7220V/380V1. 5KW7.3m52rpm660000m3/H< 60db152kg
    DS-6.0220V/380V1. 5KW6.0m55rpm580000m3/H< 60db147kg
    DS-5.5220V/380V1. 5KW5.5m60rpm465000m3/H< 60db143kg
    DS-5.0220V/380V1. 5KW5.0m65rpm356000m3/H< 60db140kg
    DS-7.3220V/380V1. 4KW7.3m50rpm792000m3/H≤40dbl14kg
    DX-6.T220V/380V1. 4KW6.7m52rpm660000m3/H≤40db110kg
    DX-6.0220V/380V1. 2KW6.0m55rpm580000m3/H≤40db105kg
    DX-5.5220V/380V1. 0KW5.5m60rpm465000m3/H≤30db98kg
    DX-5.0220V/380V0.75KW5.0m65rpm356000m3/H≤30db72kg
    DX-4.2220V/380V0.5KW4.2m80rpm260000m3/H≤30db60kg
    DX-3.6220V/380V0.5KW3.6m100rpm180000m3/H≤30db56kg



    for more detail product information,please feel free to contact our oversea sales department.
